• Wheels, 16" (40.6 cm) steel
• Tires, P205/70R16 all-season, blackwall
• Wheel, spare, 16" (40.6 cm) steel
• Tire, compact spare
• Moldings, beltline side glass (Black.)
• Headlamps, halogen reflector with automatic exterior lamp control
• Tail lamps, sculpted
• Mirrors, outside power-adjustable, body-color, manual-folding with Black base
• Windshield, solar absorbing
• Windshield, acoustic laminated
• Glass, solar absorbing
• Wipers, front intermittent
• Wiper, rear intermittent
• Door handles, body-color

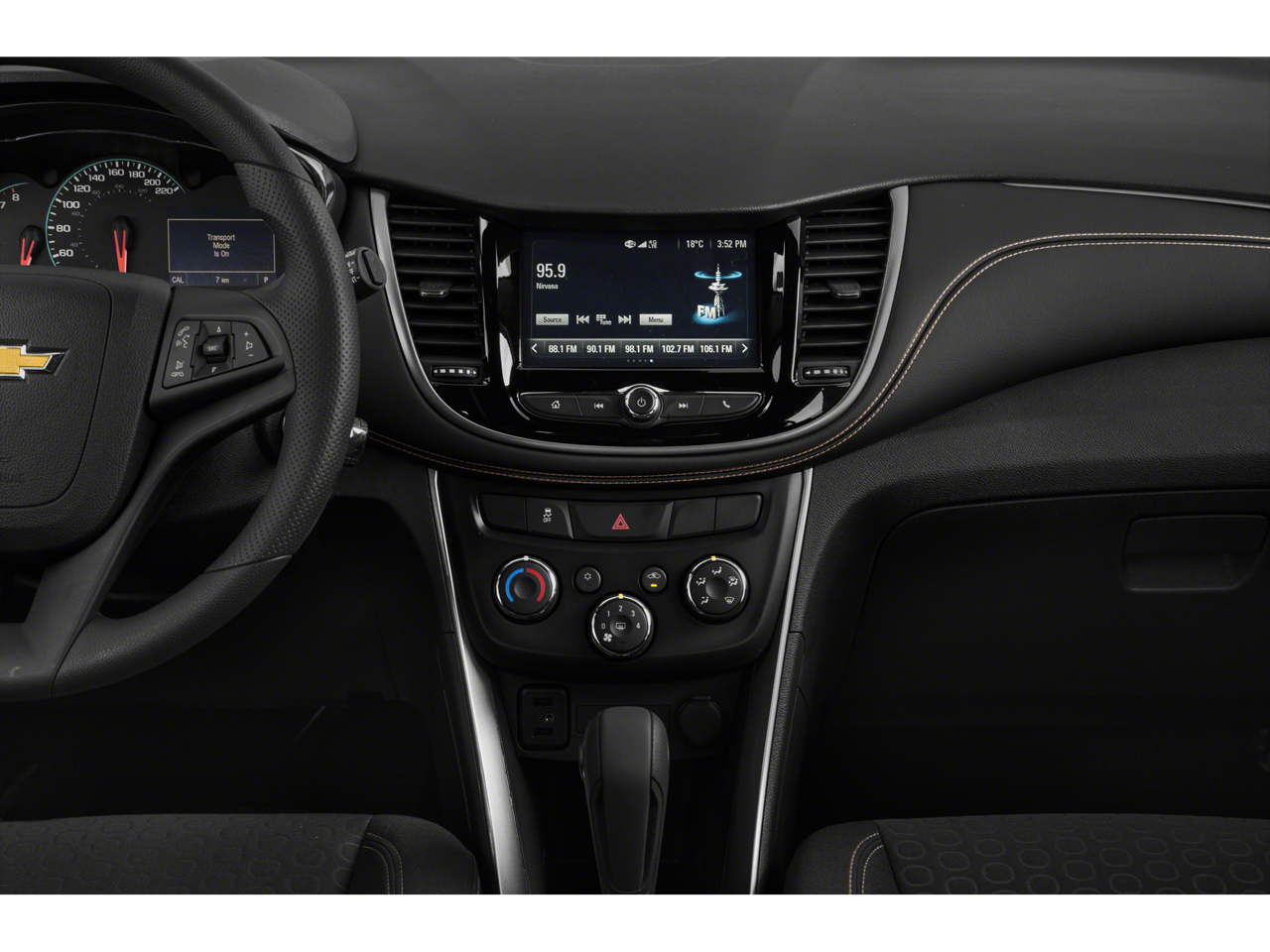

• Audio system, Chevrolet MyLink Radio with 7" diagonal color touch-screen, AM/FM stereo voice pass-through technology, includes Bluetooth® streaming audio for music and select phones; featuring Android Auto and Apple CarPlay capability for compatible phone
• Audio system feature, 6-speaker system
• Audio system feature, USB ports (2) with auxiliary input jack
• Chevrolet 4G LTE and available built-in Wi-Fi hotspot offers a fast and reliable Internet connection for up to 7 devices; includes data trial for 1 month or 3GB (whichever comes first); EFFECTIVE WITH RETAIL SALES STARTING 5/1/2018. (Available Wi-Fi requires compatible mobile device, active OnStar service and data plan. Data plans provided by AT&T. Visit onstar.com for details and system limitations.)

• Seats, front bucket with driver power lumbar
• Seat trim, cloth
• Seat adjuster, driver 4-way manual
• Seat adjuster, front passenger 2-way manual
• Seatback, front passenger flat-folding
• Map pocket, driver seatback
• Head restraints, 2-way adjustable (up/down), front
• Armrest, driver seat
• Seat, rear 60/40 split-bench, folding
• Floor mats, color-keyed and carpeted front and rear
• Steering column, manual tilt and telescoping

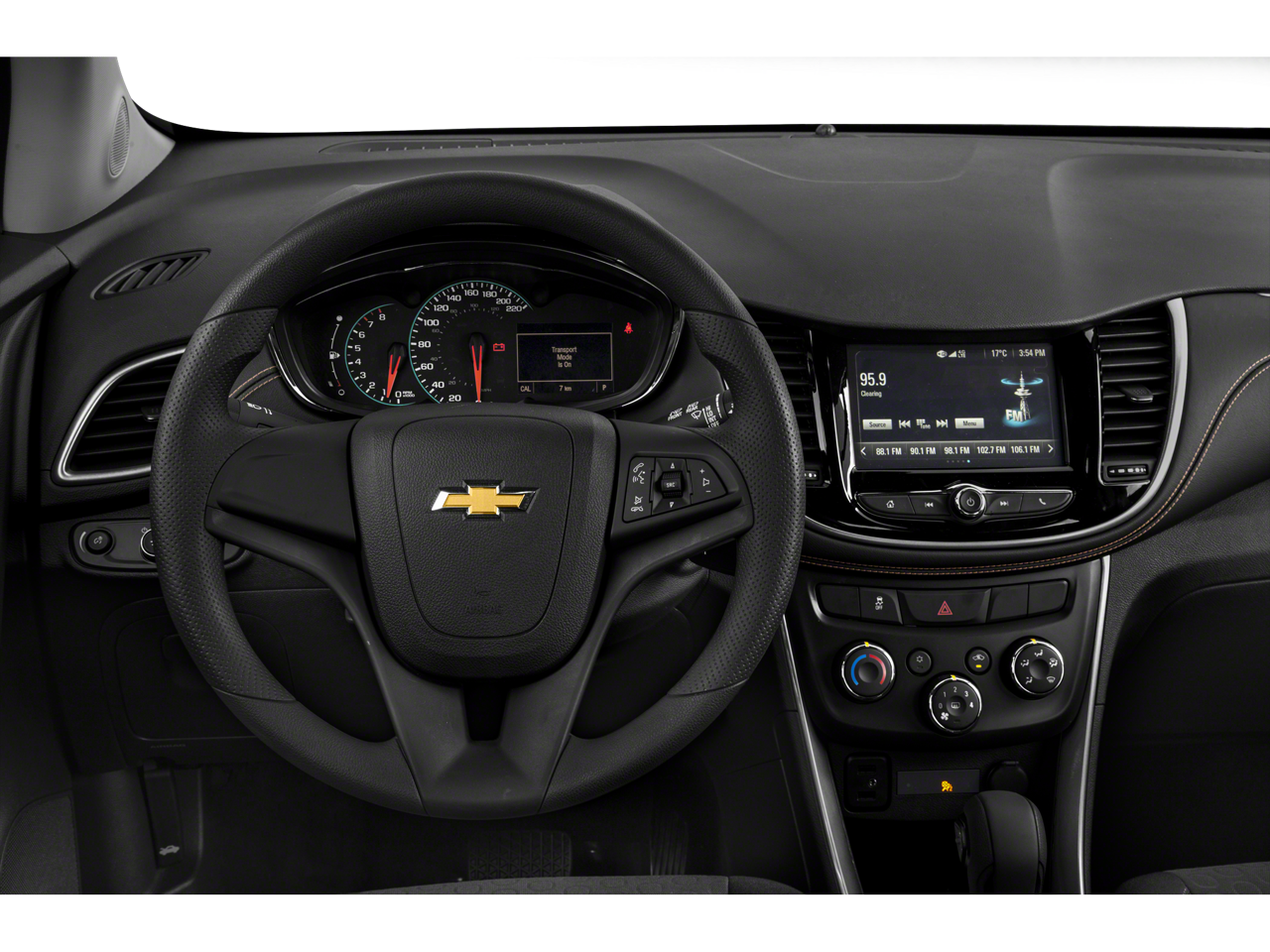

• Steering wheel, 3-spoke, urethane
• Steering wheel controls, mounted audio and phone interface controls
• Instrumentation with analog speedometer and tachometer
• Driver Information Center 3.5" monochrome display with True White back lighting and digital readouts, including speedometer, odometer, trip odometer and fuel gauge
• Speedometer, miles/kilometers
• Compass display located in the Driver Information Center
• Door locks, power programmable
• Remote Keyless Entry with panic alarm
• Keys, (2) foldable
• Windows, power with driver Express-Up/Down and front passenger and rear Express-Down
• Theft-deterrent system, unauthorized entry
• Air conditioning, single-zone manual
• Air filter, particle
• Heater duct, rear, floor
• Defogger, rear-window, electric
• Cup holders, 4 front in console and 2 rear in center armrest
• Power outlet, auxiliary, 12-volt
• Mirror, inside rearview manual day/night
• Visors, driver and front passenger vanity mirrors, covered
• Assist handles, driver, front passenger and rear outboard includes coat hooks on rear handles
• Lighting, interior with front reading lights
• Shift knob, satin silver and chrome
• Cargo security cover, rigid, removable
• Cargo storage, tray under rear floor
• Cargo tie downs, 4
• Lighting, cargo area

• StabiliTrak, stability control system includes Traction Control
• Tire Pressure Monitor System
• Daytime Running Lamps, reduced intensity low beam
• Air bags, 10 total frontal and knee for driver and front passenger, side-impact seat-mounted and roof rail for front and rear outboard seating positions, includes Passenger Sensing System (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Passenger Sensing System sensor indicator inflatable restraint, front passenger/child/presence detector (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• OnStar and Chevrolet connected services capable; EFFECTIVE WITH RETAIL SALES STARTING 5/1/2018. (Visit onstar.com for coverage map, details and system limitations. Services vary by model.)
• Chevrolet Connected Access with 10 years of standard connectivity which enables services such as, Vehicle Diagnostics, Dealer Maintenance Notification, Chevrolet Smart Driver, Marketplace and more EFFECTIVE WITH SALES STARTING 5/1/2018 (Limitations apply. Not transferable. Standard connectivity available to original purchaser for ten years from the date of initial vehicle purchase for model year 2018 or newer Chevrolet vehicles. See onstar.com for details and further plan limitations. Connected Access does not include emergency or security services. Availability and additional services enabled by Connected Access are subject to change.)
• Rear Vision Camera
• Safety belts, 3-point rear outboard and center position lap belt
• Safety belt pretensioners, driver and front passenger, dual
• LATCH system (Lower Anchors and Top tethers for CHildren), for child safety seats
• Door locks, rear child security
• Knee protector, driver and front passenger, bolster

ENGINE, ECOTEC TURBO 1.4L VARIABLE VALVE TIMING DOHC 4-CYLINDER SEQUENTIAL MFI

• (138 hp [102.9 kW] @ 4900 rpm
• 148 lb-ft of torque [199.8 N-m] @ 1850 rpm) (STD)

• Vehicle
• EPA Classification: Special Purpose
• Mileage
• Fuel Economy Est-Combined (MPG): 28
• EPA Fuel Economy Est - City (MPG): 25
• EPA Fuel Economy Est - Hwy (MPG): 33
• Electrical
• Cold Cranking Amps @ 0° F (Primary): - TBD -
• Maximum Alternator Capacity (amps): 130
• Cooling System
• Total Cooling System Capacity (qts): 6.9
• Weight Information
• Base Curb Weight (lbs): 2805
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): - TBD -
• Dead Weight Hitch - Max Tongue Wt. (lbs): - TBD -
• Wt Distributing Hitch - Max Trailer Wt. (lbs): - TBD -
• Wt Distributing Hitch - Max Tongue Wt. (lbs): - TBD -
• Suspension
• Suspension Type - Front: MacPherson Strut
• Suspension Type - Rear: Torsion Beam
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): - TBD -
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): No
• Front Brake Rotor Diam x Thickness (in): 11.8 x 1.0
• Drum - Rear (Yes or ): Yes
• Rear Drum Diam x Width (in): 9.0 x - TBD -
• Tires
• Front Tire Order Code: RAJ
• Rear Tire Order Code: RAJ
• Spare Tire Order Code: - TBD -
• Front Tire Size: P205/70R16
• Rear Tire Size: P205/70R16
• Spare Tire Size: Compact
• Wheels
• Front Wheel Size (in): 16 x - TBD -
• Rear Wheel Size (in): 16 x - TBD -
• Spare Wheel Size (in): 16 x - TBD -
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), Overall: 16.1
• Lock to Lock Turns (Steering): 2.7
• Turning Diameter - Curb to Curb (ft): 36.7
• Turning Diameter - Wall to Wall (ft): - TBD -
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 14
• Exterior Dimensions
• Wheelbase (in): 100.6
• Length, Overall (in): 167.20
• Width, Max w/o mirrors (in): 69.90
• Height, Overall (in): 64.9
• Track Width, Front (in): 60.6
• Track Width, Rear (in): 60.6
• Min Ground Clearance (in): 6.2
• Rear Door Opening Height (in): - TBD -
• Rear Door Opening Width (in): - TBD -
• Liftover Height (in): - TBD -
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Seat 1 (in): 57.00
• Cargo Area Length @ Floor to Seat 2 (in): 29.30
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): - TBD -
• Cargo Box (Area) Height (in): 31.80
• Cargo Volume to Seat 1 (ft³): 48.4
• Cargo Volume to Seat 2 (ft³): 18.7
• Interior Dimensions
• Passenger Capacity: 5
• Passenger Volume (ft³): - TBD -
• Front Head Room (in): 39.60
• Front Leg Room (in): 40.80
• Front Shoulder Room (in): 54.10
• Front Hip Room (in): 51.70
• Second Head Room (in): 38.80
• Second Leg Room (in): 35.70
• Second Shoulder Room (in): 52.80
• Second Hip Room (in): 50.70
• Summary
• Vehicle Name: Chevrolet Trax
• Body Style: Sport Utility Vehicle
• Emissions
• EPA Greenhouse Gas Score: 6
• Tons/yr of CO2 Emissions @ 15K mi/year: 6.3
